Technical specifications

Please have a read through the main features of the JBEC professional CNC router range. After the features, if you scroll down the page you can see technical specifications relevant for all three machine sizes. We see our professional range sitting at the top in terms of quality and performance in the tabletop CNC router market. Don’t take our word for it – have a good look for yourself and don’t hesitate to contact us.

See below for the main features of the JBEC professional CNC router.

Scroll down past the features to see the more detailed technical specifications applicable to all three machines in the professional series range.

BALLSCREW DRIVES | MOST EFFICIENT SYSTEM

All our machines are Ballscrew driven on all axes. Ballscrews are the most efficient method for providing motion to a machine in CNC applications and offer many advantages over trapezoidal or leadscrew drives. Ballscrews have comparatively much better efficiency and accuracy than leadscrews. Ballscrews demonstrate virtually no backlash. Backlash is where movement is lost due to playing in the drive system during direction changes and can have poor effects on machine accuracy. Ballscrews have low wear and provide smooth clean movement and precision cutting over the lifetime of the machine. Ballscrews last longer than leadscrews/trapezoidal drives due to the absence of sliding friction between the nut and the screw. The result is the most reliable mechanical motion system on the market giving long term machine stability and reliability. This gives the machine excellent long term reliability and accuracy. Ballscrew drives are virtually maintenance-free.

STIFF FRAME CONSTRUCTION | LONG TERM RELIABILITY

The core machine design is built by our professional machine builder partners in Germany with 30 years of experience in building and constructing CNC machinery. The core frame is made of precision machined, internally braced box section and is all bolted together. There are no welded joints in the frame. The results are a very stiff torsionally rigid tabletop machine system. This gives the professional range one of the most stable frames in its class on the market. The precision machine frame provides exceptional stability and retains the machine performance over the machines entire lifetime. A result is a machine that even if standing on two of its four legs can maintain its performance. There is virtually no setup time once the machine is commissioned. The system will simply drop onto a bench and be ready to go. We do not offer a tabletop machine larger than this size as it can compromise the machine stability. Full 8 x 4-foot machines require a dedicated base or extremely careful setup on-site if provided in tabletop configuration (not recommended)

INDUSTRY STANDARD CONTROL ELECTRONICS

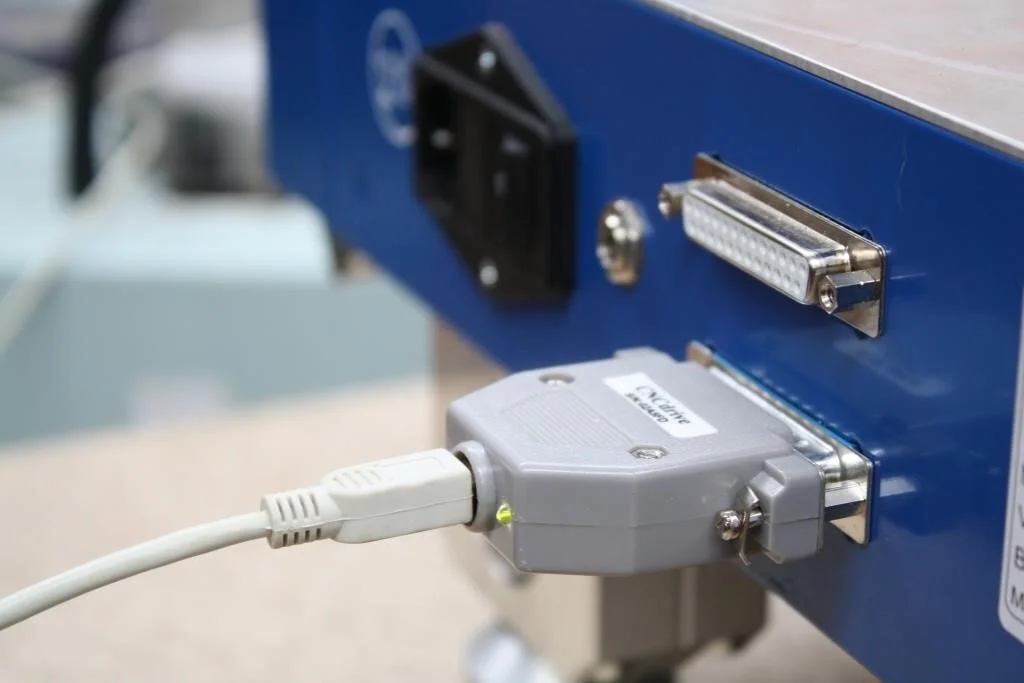

We use only top of the range industry-standard motion control equipment for our machines. The motors and drives are tuned for a high voltage DC system to provide excellent torque and machine power. All the machines come with industrial motor drives, high torque motors and run on 48V DC power supplies. The 24V DC no-volt safety circuitry provides the interface between the user and the machine. This is required for CE certification and to protect you. This isolates the user completely from the 230V feed for extra safety whilst also providing protection against accidental machine startup. A production-spec machine is dangerous without a no-volt release start-up circuit. All our routers are fully supported with a USB controller with full windows certification on all versions of Windows XP,7 and 8 (32bit and 64bit OS). See here for a demonstration of the performance from our USB motion controller. We can rapid move our machines to up to 10,000mm/min. However, we recommend 6,000mm/min. We can machine at up to 4,000mm/min depending on the materials. An industrial spec router should be able to move well in excess of 1,000mm/min in all work-piece materials.

FULLY INTEGRATED PC BASED SOLUTION

We supply and support our machines using a Windows-based machine controller. The machine controller coupled to Cut2D, VcarvePro and Cut3D from Vectric allows for a fully integrated CAD/CAM and Machine controller to be installed on any Windows PC. Compatibility with other CAD/Graphics packages is also good – as STL files can be imported directly into Cut3dD and DXF files can be directly imported into Cut2D/VcarvePro. Therefore the full journey from design to toolpath generation through to part machining is carried out on one integrated control solution (no need for slow and cumbersome data transfer on USB flash drive). This allows for quick and easy changes and keeps the design and toolpath generation close to the machining process. UCCNC (the machine controller) has a live view of the machine at all times relative to the workpiece position. This significantly helps with the machine setup and general machine operation.

 Z-AXIS THROAT FLEXIBILITY
