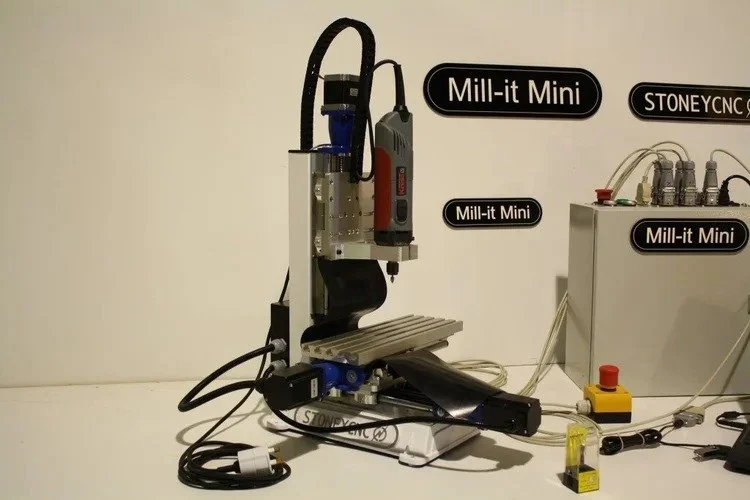

The Mill-it-Mini CNC Router Range

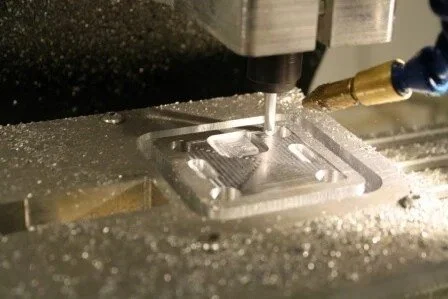

The Mill-it-Mini CNC milling machine from the Mill-it range is a versatile accurate mini mill for a variety of materials.
The Mill-it-Mini machine is the first machine in the Mill-it range. The machine excels in a variety of materials. Click Here for more demonstrations. Currently available with single-phase and 3 phase router spindles. We will soon release a low RPM high torque spindle for low-speed milling applications.
Features
HIGHEST Performing Milling-System in its Class

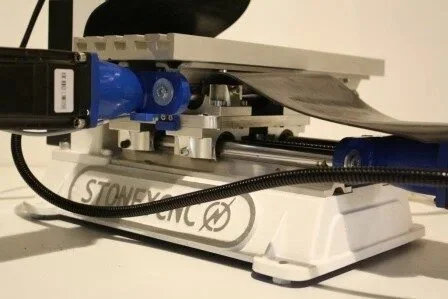

The mini mill uses supported rails, ball screws and ball nuts to transfer motor movement into linear movement. The ball screw and ball nut combination is THE most efficient way to drive a CNC system of this kind. The ball screws are coupled to the NEMA 23 motors using double angle contact thrust bearings designed to isolate the motor from the machining loads. The results are a super accurate high powered mini milling system. Click Here to see for yourself.
Step-by-Step Video Support
We have put a lot of effort into making the learning process as easy as possible. Whether you are looking to start from scratch or looking to integrate your current CAD programmes into CNC – we have put together a comprehensive set of tutorials to help you see how easy it is to use the machine. Click here to see more details.
Specifications
| Travel in X Y and Z axis | 150 x 100 x 100mm |
| Rapid Feed rate | 4,000mm/min (65mm/sec) |
| Spindle Options | Kress | 750 Watt HF spindle |
| Low RPM spindle options | Soon to be released |
| Machine Weight | 25kg |
| Software Compatibility | USB 2.0 |
| Z height | Adjustable Z axis bracket |
