Services Z-Axis Throat Modification

The Z-axis Throat Modification offered by Stoney CNC provides a solution for expanding the versatility of your CNC machine, allowing for greater access and flexibility when working with larger or more complex workpieces. This modification involves removing part of the T-slot bed to facilitate clamping and positioning items like long enclosures, which may otherwise be difficult to accommodate within the machine's frame. The adjustment ensures that larger objects can be handled without compromising the machine's performance. However, users must be cautious of cable routing along the frame, especially for control panel circuits, to avoid potential interference or damage during operation.

Z-Axis Throat Height Flexibility

We were approached and asked about a number of performance aspects of the professional routers. One of which was โ€œcould we machine holes for cable glands on the end of a 600mm high enclosure box?โ€. The depth of travel of the Z-axis was not the issue here as it was a simply 2D profile into the 3mm plastic enclosure. The problem was the ability to mount the long aspect ratio dimension of the enclosure into the machine.

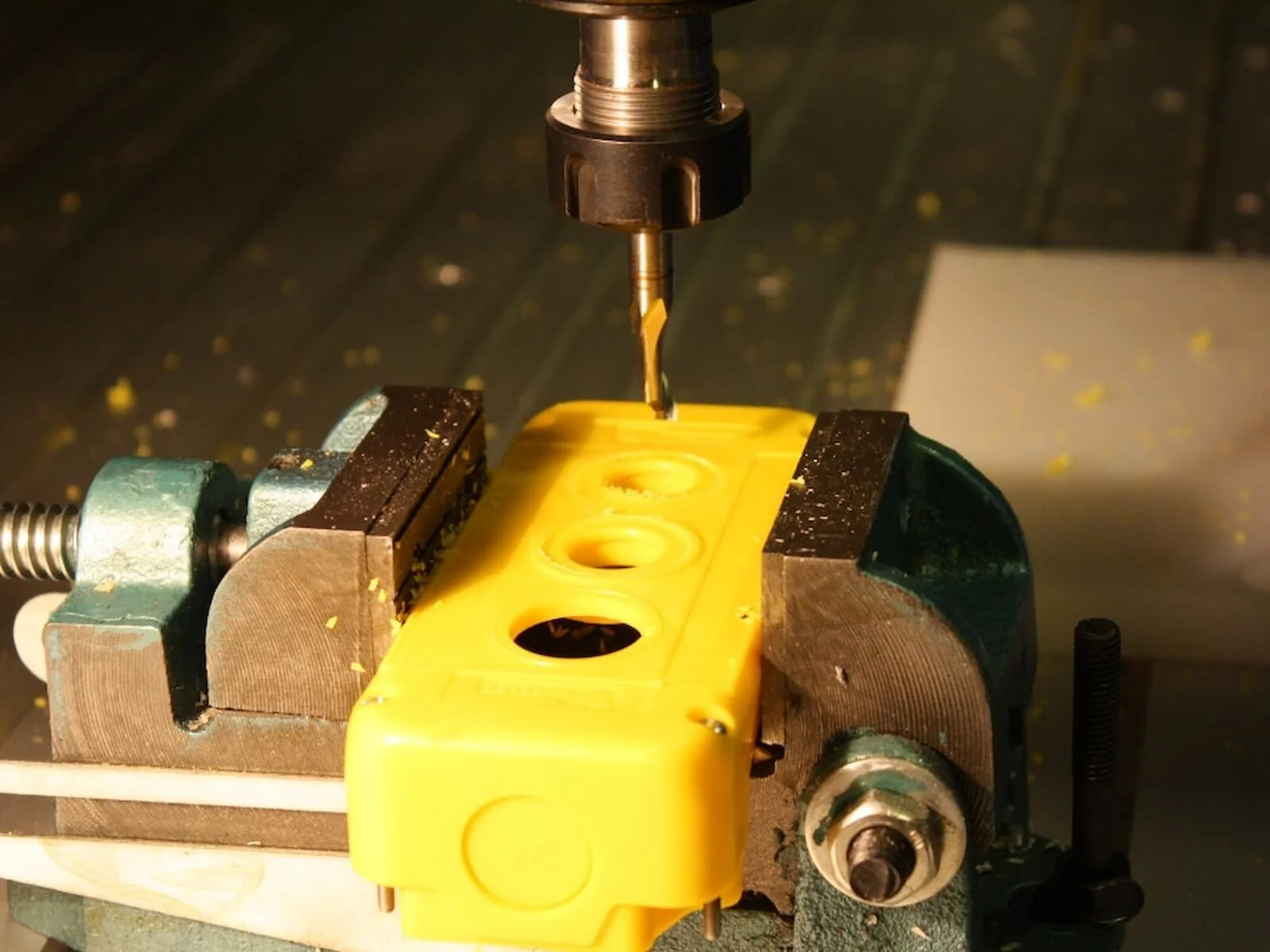

Part removal of the Tslot bed allows access through the frame to clamp such an enclosure in place. The images below show this procedure. It must be noted that cables are routed down the frame for the no-volt release circuitry in the control panel. Therefore care must be taken when using this approach.

 Videos



Precision Z-Axis Throat Modifications for CNC Machines

At Stoney CNC, we provide high-performance Z-axis throat modification services designed to enhance the vertical clearance and capability of your CNC machine. Whether youโ€™re working with wood, plastics or metal, this modification increases the machine's working range and allows for more flexible part processing and tooling.

Our service is especially valuable for CNC users working on industrial or bespoke manufacturing projects that require greater precision and adaptability. The modification involves customising key components of the Z-axis system, adjusting the design and structure to support deeper cuts, larger fixtures, and more diverse tools.

Key benefits of our Z-axis throat modification include:

  • Increased clearance for milling larger parts and materials

  • Compatibility with a wider range of equipment and custom jigs

  • Enhanced performance when machining large products or multi-step operations

  • Ability to modify existing machines without replacing the full unit

We offer this modification service on a variety of CNC platforms, with every job based on a technical assessment of your current setup, usage goals and material requirements. Each upgrade is precision-machined and tested to ensure consistent quality and long-term reliability.

If you're a customer seeking to extend your CNCโ€™s working envelope, improve productivity, or add value to your machining operations, our expert team can provide a tailored throat extension solution. We work closely with clients across the industry, offering quick turnarounds and comprehensive support for every project.

Contact us today for more information, a quote, or to discuss how a Z-axis throat modification could help improve your machining performance.
