Blue Oceans Design

5.0 Robotics

Sep 19

Check out Pieters work over at BLUE OCEAN DESIGNS

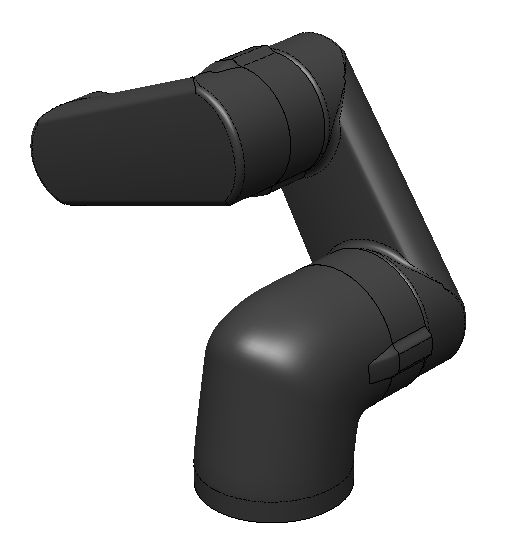

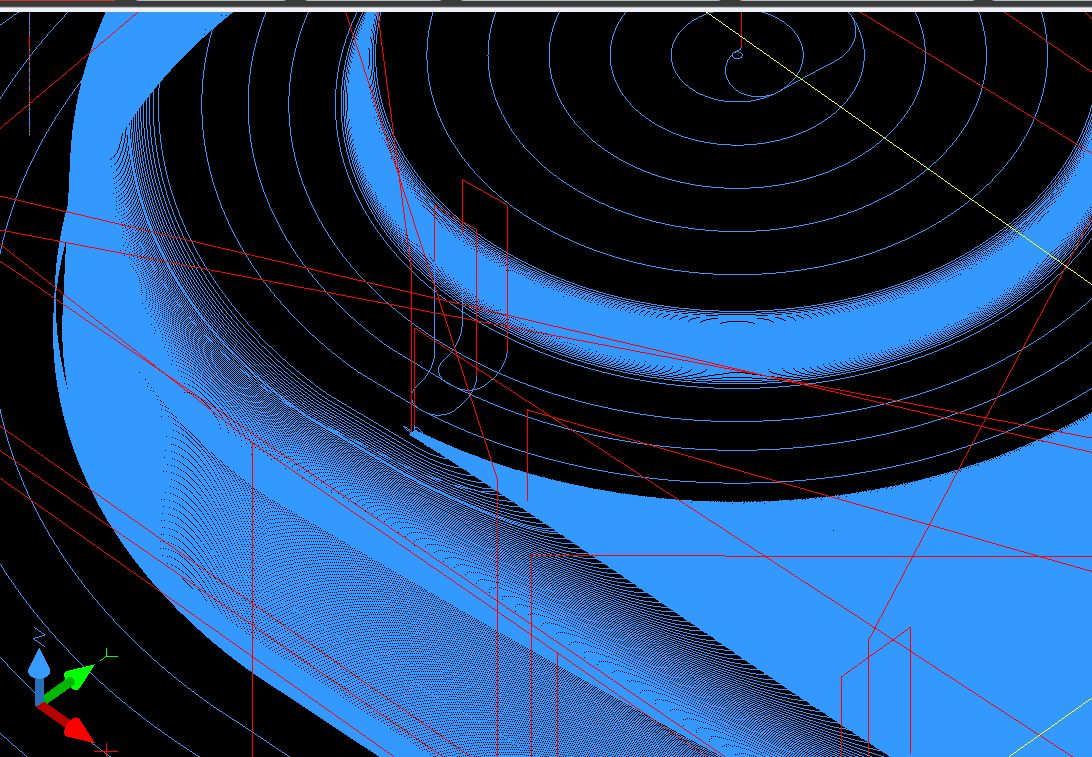

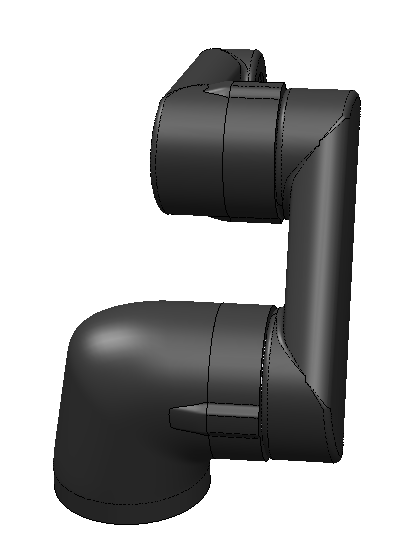

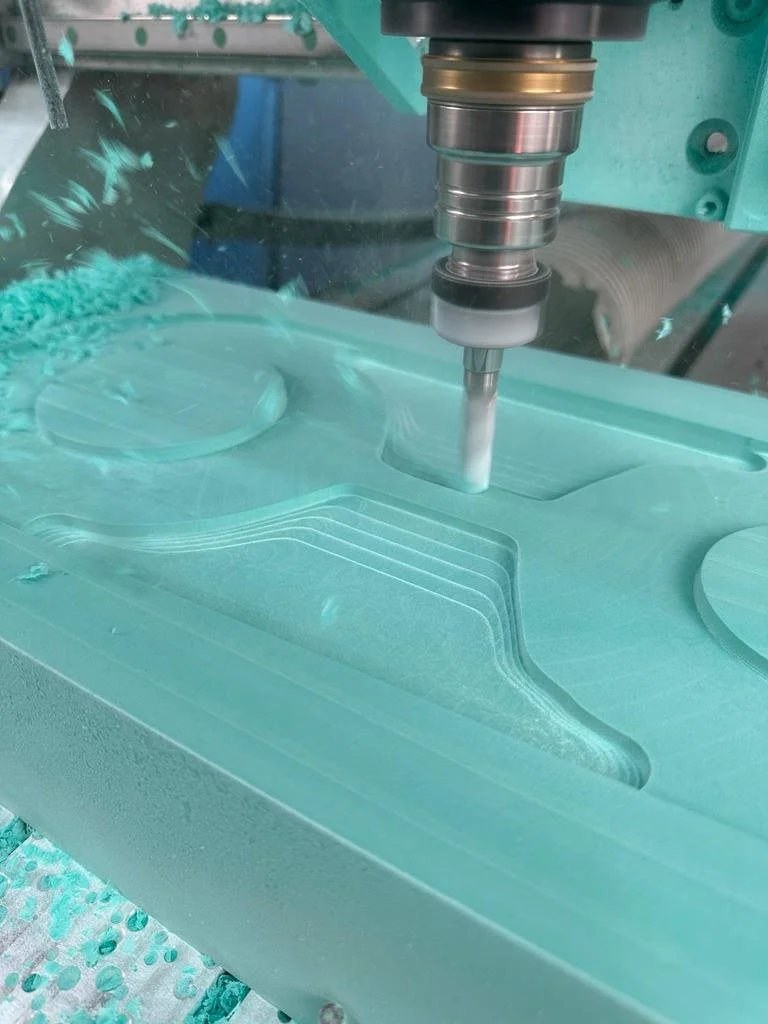

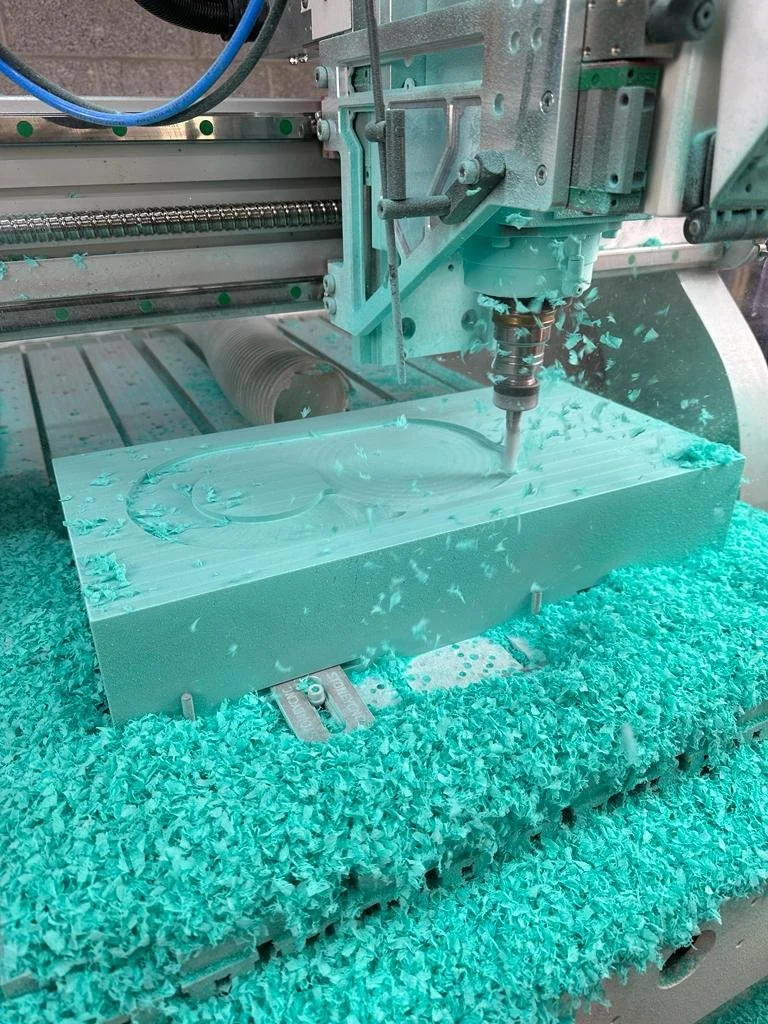

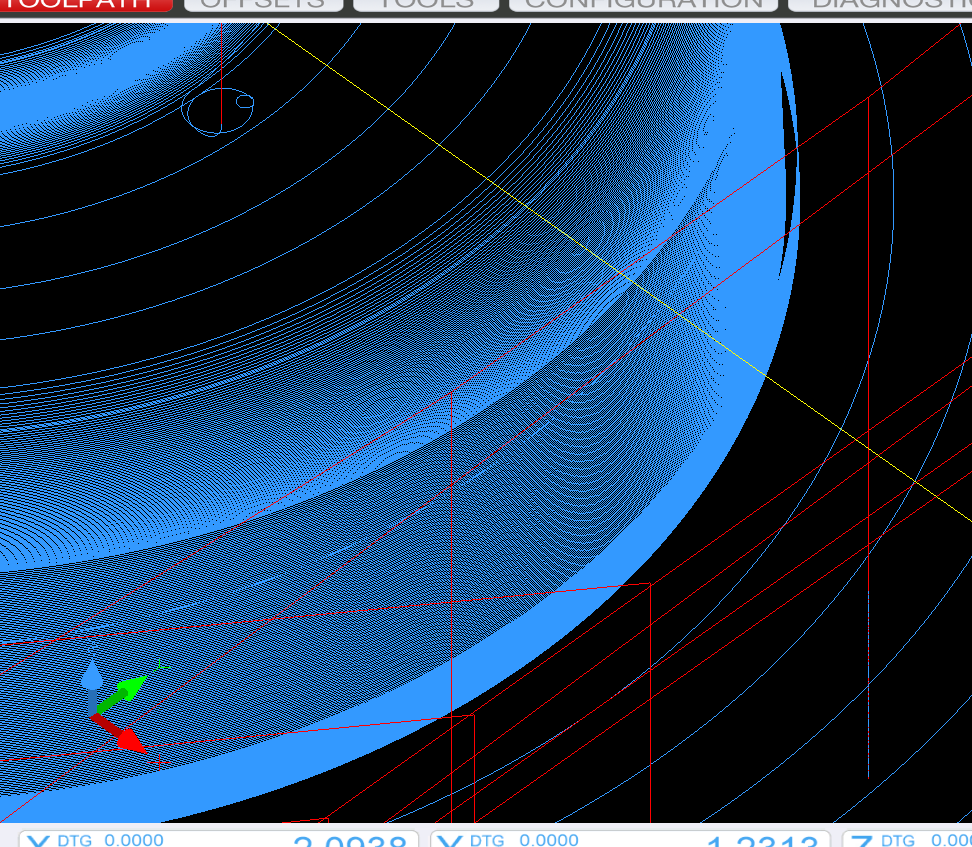

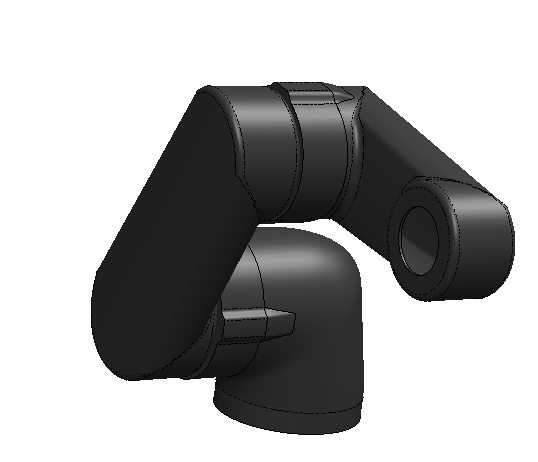

See below the machine cutting Epoxy EP-700 into a mould for a robotic arm. This stock is a challenge for a typical machine in this class due to its high aspect ratio. At 250 x 500 in XY and 100mm deep the stock challenges the Z axis capacity of a machine in this class. The EXEC 8 with the high strenght and high clearance and large Z stroke has no issue processing this job. The foam was then used to make a carbon fibre Robotic arm components.
