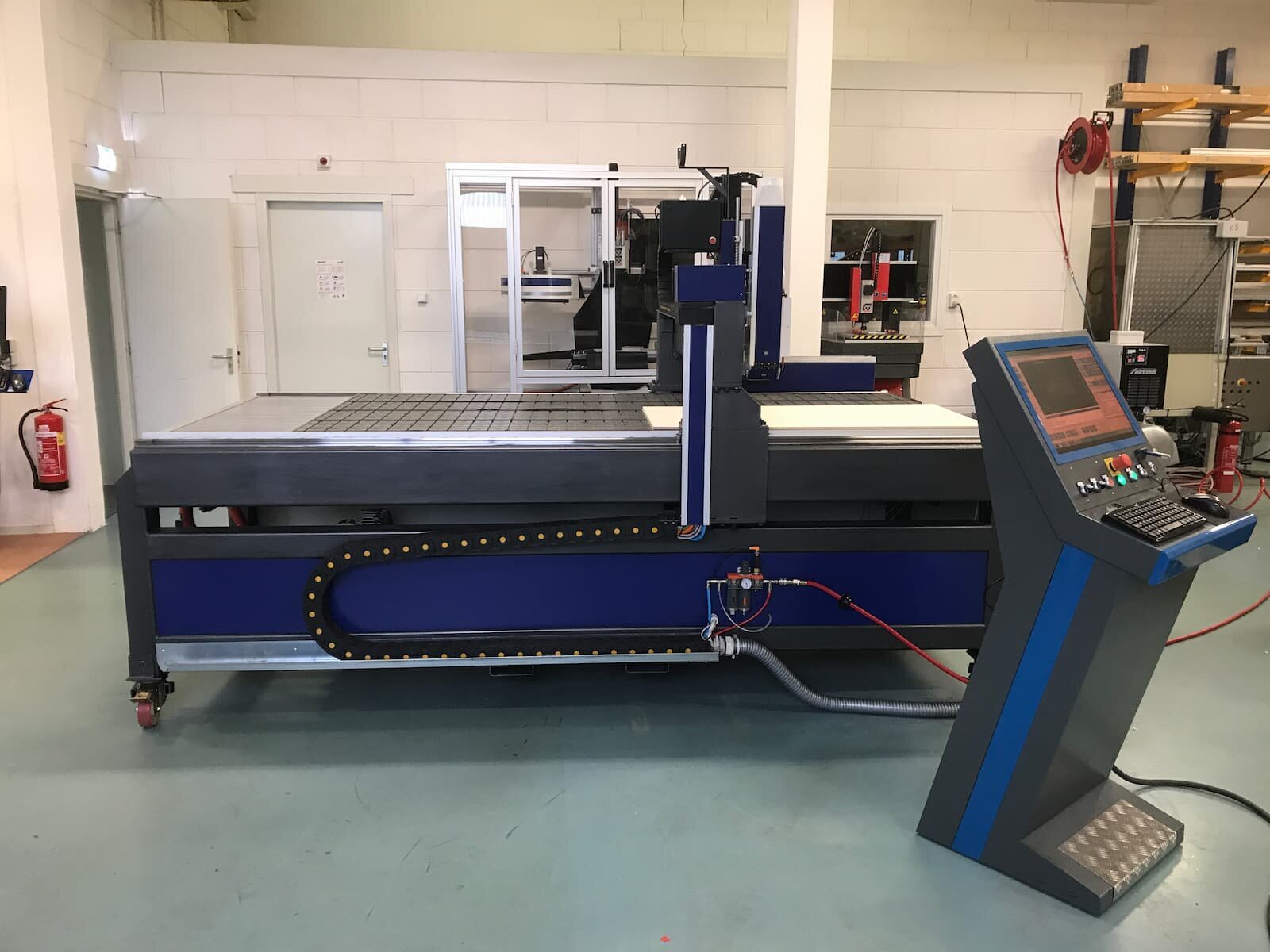

What is a CNC machine? ⚙️
A Computer Numerical Control (CNC) machine is an automated machine tool that uses computer programming to control its movements, allowing for precise and repeatable manufacturing of parts. CNC technology eliminates the need for continuous human intervention, which improves efficiency, precision, and consistency. Originally developed in the 1940s, CNC machines have become essential in manufacturing, transforming industries by enabling complex operations on materials such as metal, plastic, and wood.
How Does CNC Work?
CNC machines follow a series of computer-generated instructions that guide the machine through the manufacturing process to produce a part that meets exact design specifications. Here’s an overview of the steps:
Design (CAD): The process begins with a Computer-Aided Design (CAD) file, which specifies the precise dimensions and geometry of the part.
Programming (CAM): The CAD file is imported into Computer-Aided Manufacturing (CAM) software, which converts the design into a sequence of commands that the CNC machine will follow.
Post-Processing (G-Code): A post-processor translates the CAM instructions into G-code, a standardized language that communicates position, velocity, and speed instructions to the CNC machine.
Execution: The G-code is loaded into the CNC machine, which controls movement along multiple axes, such as X (left and right), Y (front and back), and Z (up and down), to shape the material accurately.
Common Types of CNC Machines and Their Uses
CNC Routers: Widely used for cutting and shaping materials like wood, plastic, and soft metals. They are common in woodworking, sign-making, and prototyping.
CNC Mills: Typically used for machining complex metal parts. CNC mills operate on multiple axes to precisely remove material and create parts with intricate details.
CNC Plasma Cutters: Utilize a plasma torch to cut through electrically conductive materials like steel. They are popular in metal fabrication and construction for 2D shapes.
CNC Laser Cutters: Use a high-powered laser to cut and engrave materials like metal, plastic, and wood. These machines offer high precision and can also handle intricate 3D shapes.
Pick and Place Machines: Primarily used in electronics manufacturing, these machines have nozzles that pick up and place components onto circuit boards with precision, often seen in mobile phone and electronics assembly.
Key Industries Using CNC Machines
CNC machines have a vast range of applications across various industries, particularly in manufacturing, where they help produce components from multiple materials with speed and precision:
Aerospace: For creating high-tolerance parts like engine components and landing gear.
Automotive: Used to manufacture engine parts, chassis components, and custom parts.
Electronics: Essential for producing enclosures, heat sinks, and PCB components.
Woodworking: Used for custom furniture, cabinetry, and decorative items.
Medical: CNC machines produce surgical tools, implants, and intricate medical devices.
Advantages of Using CNC Machines
Precision and Consistency: CNC machines achieve high levels of accuracy, essential for parts requiring tight tolerances and uniformity.
Speed and Efficiency: Automated CNC processes enable faster production rates, making them suitable for high-volume manufacturing.
Complexity and Versatility: CNC machines can produce intricate shapes and complex geometries that would be challenging to create manually.
Reduced Human Error: CNC programming reduces variability caused by human error, leading to higher quality and fewer defects.
In summary, CNC machines play a vital role in modern manufacturing, enabling efficient, precise, and complex production across a variety of industries and materials. Their ability to automate repetitive processes with high accuracy has made them indispensable in both small workshops and large-scale production facilities.
