Contour mill upgrade

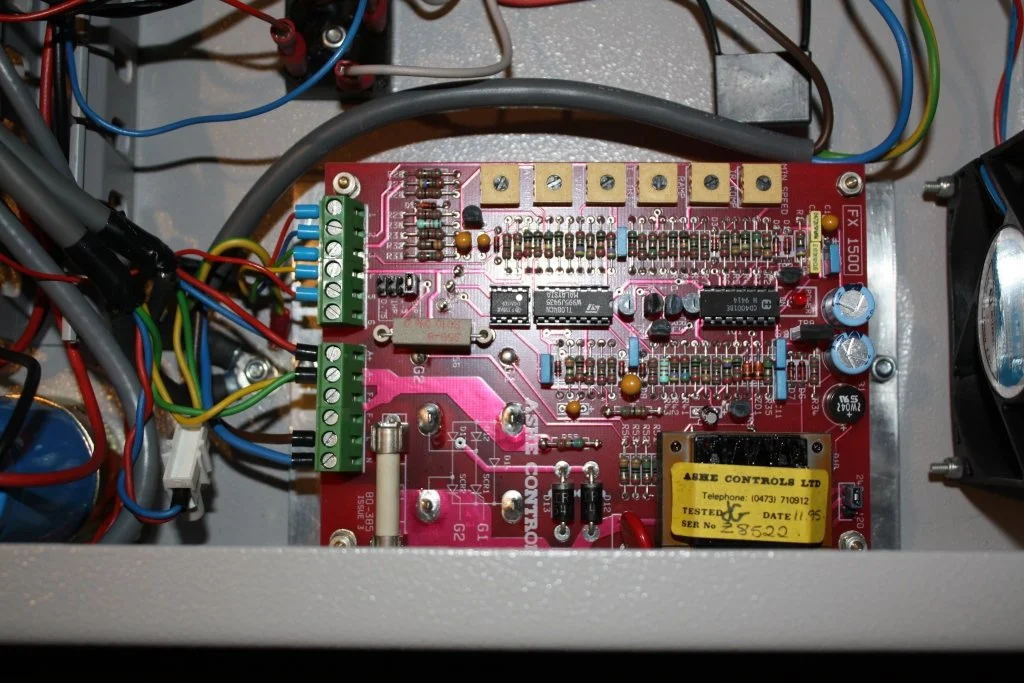

A Contour Milling machine was fully stripped right back to the motors. The machine has new motors on the X and Y axes. The Z motor, spindle, spindle control board, relays, and power supply have been kept from the original machine. The system is controlled via a UC300 USB motion controller and an HDBB2 Motion control board controller from Mach3. The system is now fully operational on Mach3 in the field.
